Alpha Accu-Lith ESWL
Superior Technology

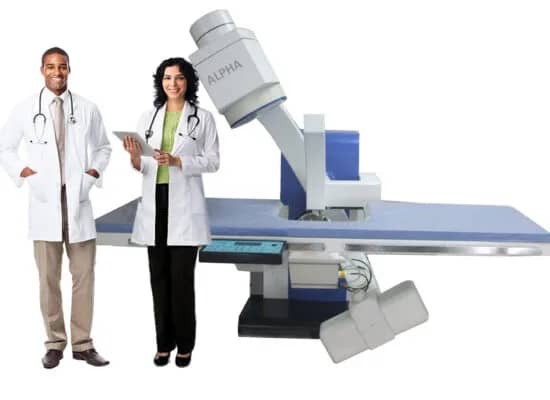

The ALPHA Accu – LITH is Forth Generation ESWL Lithotripter, using the latest Electromagnetic Technology, and High Fragmentation Shock-Head technology to create a very efficient system for lithotripsy. The Main Unit is a fully integrated system with Integrated therapy table & Ultrasound probe arm system.
Watch Product Video
Stone Free Rate of 98% (in one sitting)
The Finest & Safest Fragmentation
The attributes to look for in modern shockwave technology are not only the ability to fragment stones, but more critically, the ability to do so in a single sitting without the patient returning for re-treatment and also to avoid Kidney Damage.
The unique High Fragmentation Shock Head utilized in the ALPHA Accu – LITH Lithotripter is endowed with just the right combination of high pressure and focal size to pulverize stones efficiently and safely into fragments small enough to be eliminated naturally.
High Fragmentation - Shock Head
The secret of Alpha-ESWL Lithotripters is its Exclusive High Fragmentation shock Head that delivers efficient, consistent & reliable energy. The High Fragmentation Shock Head ensures unsurpassed stone free rate of 98% (in one sitting) – while protecting the Kidney at all times.
The Exclusive EM Protective Shield placed inside the Shock Head protects the Kidney and patient from EM Radiation while breaking the Kidney Stone successfully. Only Alpha ESWL provides this protection to the patient.
EVIDENCE OF FINER FRAGMENTATION - Achieved with fewer shocks.
The comparison below shows the residual fragments after the in-vitro fragmentation of a Test Stone (left) using the Alpha High Fragmentation Shock Head.
X-Ray Image Before and After
Precise Alignment
The risk of miss-alignment is avoided with the fully integrated shock source and C-arm, making set-up fast and reliable. The Isocentric movements of the therapy head and X-ray imaging C-arm, ensures precise stone localization.
The ALPHA Accu – LITH ESWL system’s isocentric design allows both the shockwave and the imaging systems (X-ray system & Ultrasound system) to revolve around a single point.
X - RAY System
The X-Ray system is equipped with High Frequency Image Intensifier, and uses Digital imaging CCD technology ( 400,000 Pixels) to produce quality images on a 14 inch Digital Multifunctional Monitor. Exact positioning is obtained through the integrated isocentric shock head and X-ray system.
The C-arm moves along left and right projections, while the central X-ray beam continues to pass through the center of the focal zone at all times. Setup is fast and reliable.
Motorized Ultrasound Probe Arm System
The Motorized Ultrasound probe arm is designed to house the ultrasound probe firmly, and zooms in and out for best visualization. The probe arm rotates around the shock head to facilitate the best angle allowing visualization of stones from various positions and ensures precise stone localization.
This design allows both the shockwave and Ultrasound wave to revolve around a single point. This ensures precise alignment of the targeting system and the shockwave focus at all times.
Ultrasound Localization System
- Also able to localize and break calculi by Ultrasound.
- Integrated Ultrasound Probe Arm provided
- Ultrasound localization probe arm is fixed to the Shock head and rotates freely around the Shock Head.
Multi functional Urology Table
- The treatment table can be used for Urology Procedures.
- Leg holders are provided for urology procedures. ( Optional )
- The treatment table is a Multi functional therapy table
- Six directional movement of Urology Table ( up-Down / Left-Right / Inward-outward )
- All movements are motorized.
Testimonials of our customers
Dr. A. Pethiyagoda
Specialist Urologist (MS, FRCS (Edin).
I am impressed to see that the Alpha ESWL Lithothotripter shows a very high success rate and stone free rate in our patients in one sitting. This is a very high success rate compared to other ESWL lithotripters in the market.
P.U. Fernando (ESWL Operator)
I have many years of experience performing ESWL, and up to now I have performed more than 15,000 ESWL procedures. I work both with Alpha ESWL machine and a German ESWL machine. Our observation is – the Alpha ESWL has a far better stone breaking ability than the other German ESWL we work with.I have successfully broken Kidney and upper ureter stones with the Alpha ESWL machine, that the German ESWL Machine could not break. Xray images and patient clinical reports are available on this respect.
R.H. Ranasinghe ( ESWL Operator )
I work with the Alpha ESWL lithotripter and also with an expensive German Lithotripter. My observation is that the Alpha ESWL lithotripter has shown 98% success rate and stone free rate in our patients ( in one sitting). This I observed is far greater than the other ESWL machines that I work with which has about 85% success rate and stone free rate.
Main Unit
- Fully integrated ESWL with Integrated C-arm Xray & Ultrasound system.
Electro Magnetic Technology
- Electromagnetic Shock Wave Lithotripter System
Power Supply
- Voltage : AC 220 +/- 10%
- Frequancy : 50 +/- Hz
X-Ray System
- High Frequancy X-ray system
- High Voltage Generator 50mA
- C-arm with 9 inch Image Intensifier
- 400,000 pixels CCD Camera
- X-Ray Image Resolution : 14LP/cm
Ultrasound Localization System
- Also able to localize and break calculi by Ultrasound.
- Integrated Ultrasound Probe Arm provided
- Ultrasound localization probe arm is fixed to the Shock head and rotates freely around the Shock Head.
Shock- Head
- High Fragmentation Shock – Head
- The Shock Head moves freely along the integrated C-arm in spherical motion around the focus area.
Multi functional Treatment Table
- The treatment table can be use for Urology Proceders.
- Leg holders are provided for urology procedures. ( Optional )
- The treatment table is a Multifunctional therapy table
- Six directional movement of Urology Table ( up-Down / Left-Right / Inward-outward )
- All movements are motorized.
Control System
- Control system consists of Backlight LCD screen to monitor /control the parameters.
Intercom System
- Intercom system for communication with patient.
